Large-Scale Potato Starch Production: Recommended Equipment for Wet Process Technology



For large-scale potato starch production, wet process technology remains the industry standard for achieving high starch yield, purity, and processing efficiency. This method, which separates starch granules from potato cells in a water-based system, is particularly suited for automated production lines handling 20 tons or more of raw potatoes daily. Below is an overview of the essential equipment required for a fully integrated, large-scale potato starch production line.

Essential Potato Starch Equipment for an Automated Wet Process Line

1. Raw Material Handling and Washing Unit

Primary Function: Removal of soil, stones, and organic impurities from raw potatoes.

Key Equipment:

Dry Sieve: Remove the solid dirties like soil, stones by high rotation.

Rotary Washer: Provide thorough scrubbing and washing through rotational movement in a water medium.

2. Potato Rasping and Grinding Unit

Primary Function: Disintegration of potato tissue to release starch granules.

Key Equipment:

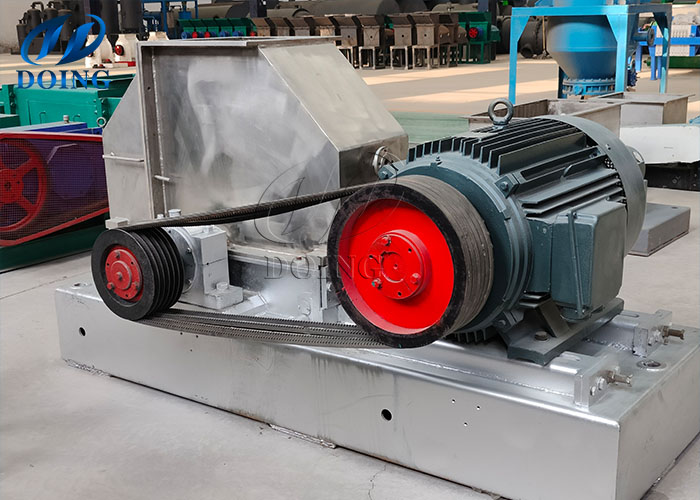

High-Capacity Raspers: Feature specially designed blades to create uniform pulp consistency while maximizing potato starch release.

potato rasper

3. Potato Starch Extraction and Separation Unit

Primary Function: Separation of potato starch milk from fibrous pulp.

Key Equipment:

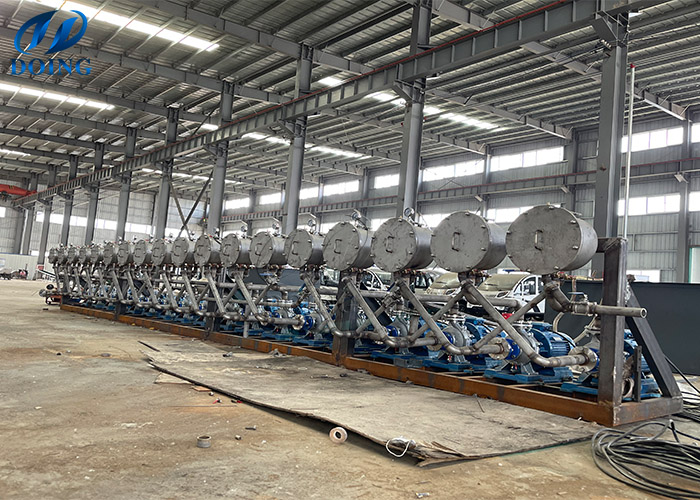

Centrifugal Sieve: Multi-stage screening systems that separate potato starch from fiber through counter-current washing principles.

Desanding Cyclones: Specifically designed for removing mineral impurities.

4. Potato Starch Purification Unit

Primary Function: Further removal of residual impurities and soluble components.

Key Equipment:

Hydrocyclone Systems: Provide efficient washing and concentration of potato starch and refine starch milk by removing proteins and fine impurities through density-based separation.

centrifuge sieve

5. Dewatering Unit

Primary Function: Reduction of moisture content in purified starch slurry.

Key Equipment:

Vacuum Filtration Units: Employ vacuum pressure to extract water from starch slurry, forming a moist cake with significantly reduced moisture content of 40%.

6. Drying System

Primary Function: Final moisture reduction to meet commercial standards

Key Equipment:

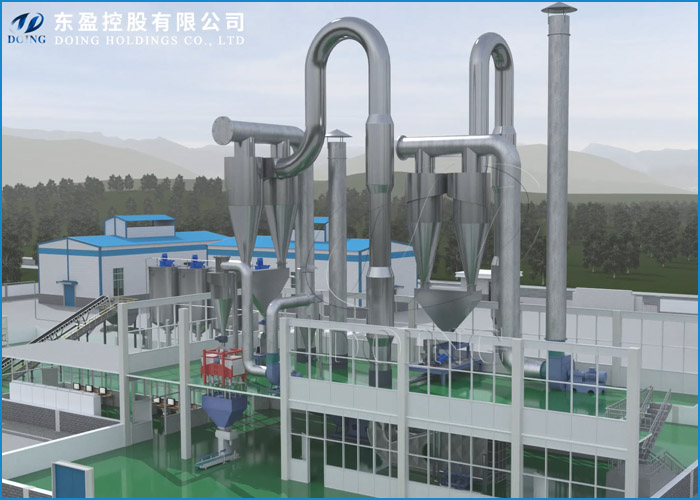

Flash Dryers: Utilize rapid hot air exposure to efficiently dry starch particles without compromising quality.

flash dryer

7. Finishing and Packaging Unit

Primary Function: Preparation of final product for storage and distribution.

Key Equipment:

Sieving Systems: Ensure uniform particle size distribution.

Automated Packaging Machines: Provide precise weighing and packaging operations.

Technical Advantages of Wet Process Technology

The recommended wet process configuration offers distinct advantages for large-scale potato starch operations:

Enhanced Potato Starch Recovery: Achieves superior extraction rates through comprehensive cell rupture and counter-current washing.

Consistent Quality Output: Multi-stage refining ensures high purity and uniform product characteristics.

Processing Efficiency: Continuous operation capability supports high-volume throughput requirements.

Resource Optimization: Closed-water systems minimize fresh water consumption through sophisticated recycling.

The wet process technology, incorporating specialized equipment from initial washing through final drying, represents the optimal solution for large-scale potato starch production. If you wanna invest in a large-scale potato starch production line or upgrade your small line, you can chat with us! Henan Jinrui's engineers can design a suitable line to meet your need!
